Description

Description:

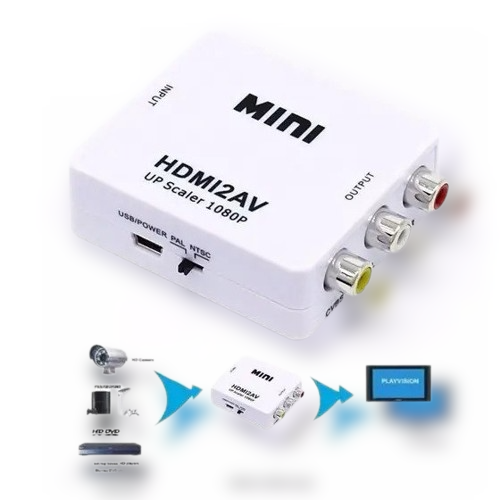

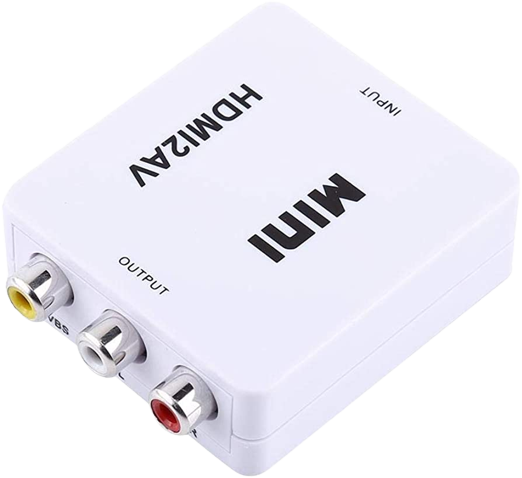

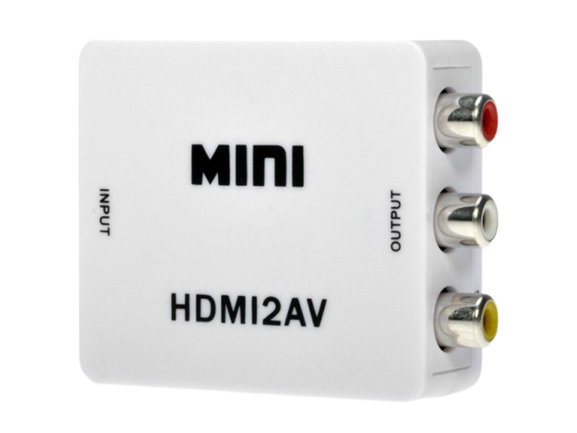

The HDMI to AV signal converter which will convert HDMI video signal or audio signal to AV(CVBS)composite video signal and the FL/FR stereo audio signals, while support DVI system sideline signals.To help users convert the high quality of the HDMI video signal into normal CVBS signal(standard-definition 480i, 576i). So that can play on TV, VHS VCR, DVD recorders, etc and support NTSC and PAL two TV format.
Specifications:
Input ports: HDMI type female
Output ports: AV RCA (Yellow, White, Red).
Dimensions: 66 x 55 x 20mm
Package Weight: 40g
Color: Black, White (Optional)
Application Example: HD camera, HD DVD, Displayer, Earphone, Projection.
Resolution Support:
640×480@60Hz,800×600@60Hz,1024×768@60Hz,1280×720@60Hz,1280×1024@60Hz,1360×768@60Hz,1600×1200@60Hz,1920×1080@60Hz.180i/60Hz,480p/60Hz,576i/60Hz,576p/60Hz,720p50/60Hz,1080I50/60Hz,1080p/60Hz.
CVBS output:PAL, NTSC_M, and NTSC_J.
